Update for the Honda Gold Wing

24. October 2019

4 min read

The touring machine from Honda gets a few changes for 2020. Among other things, the engine was revised.

Update for the Honda Gold Wing

The injection system of the engine and the dual-clutch transmission (DTC) has been revised. This should improve driving, especially at walking pace. The DTC is now also available as an option for the standard version of the Gold Wing.

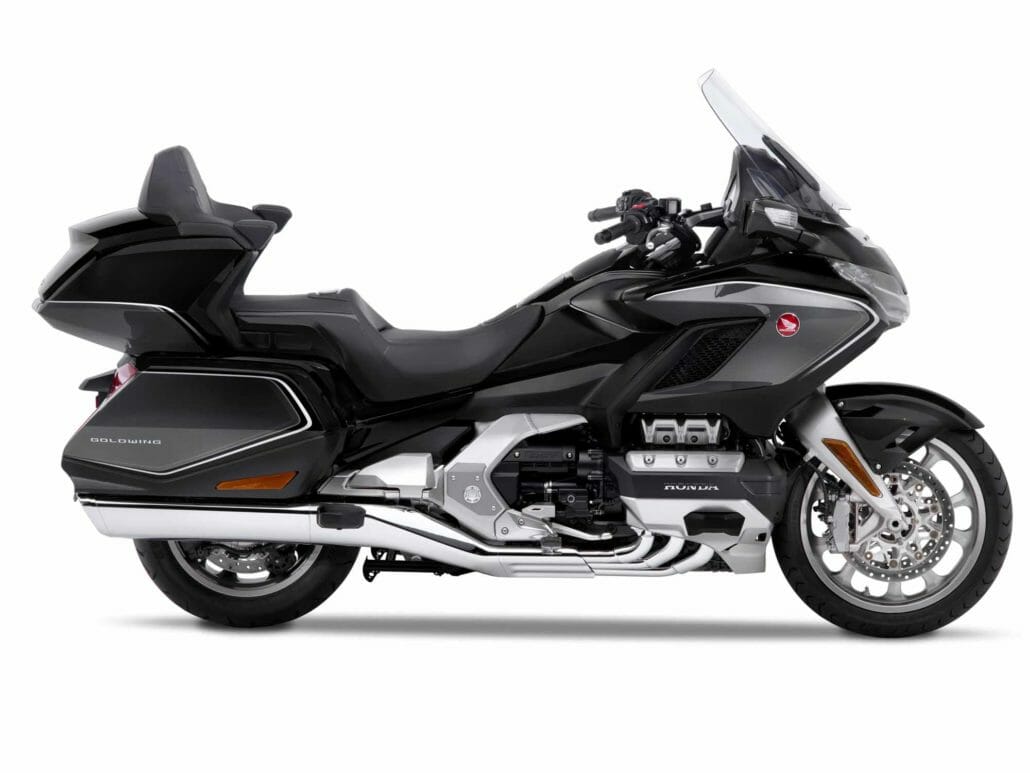

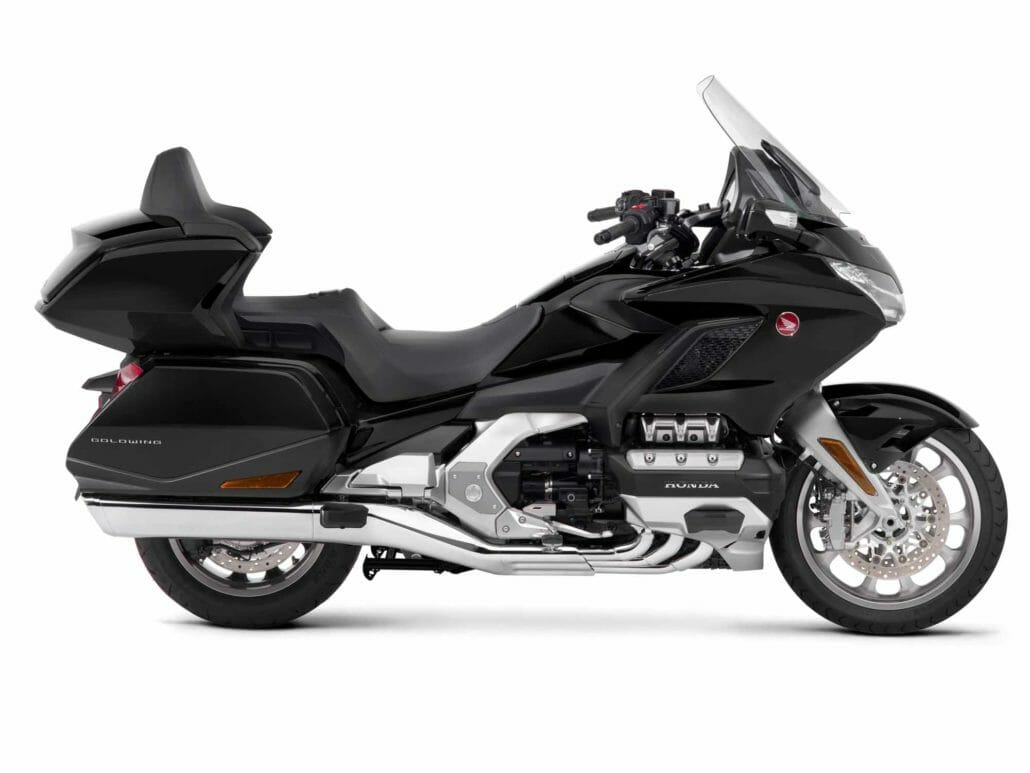

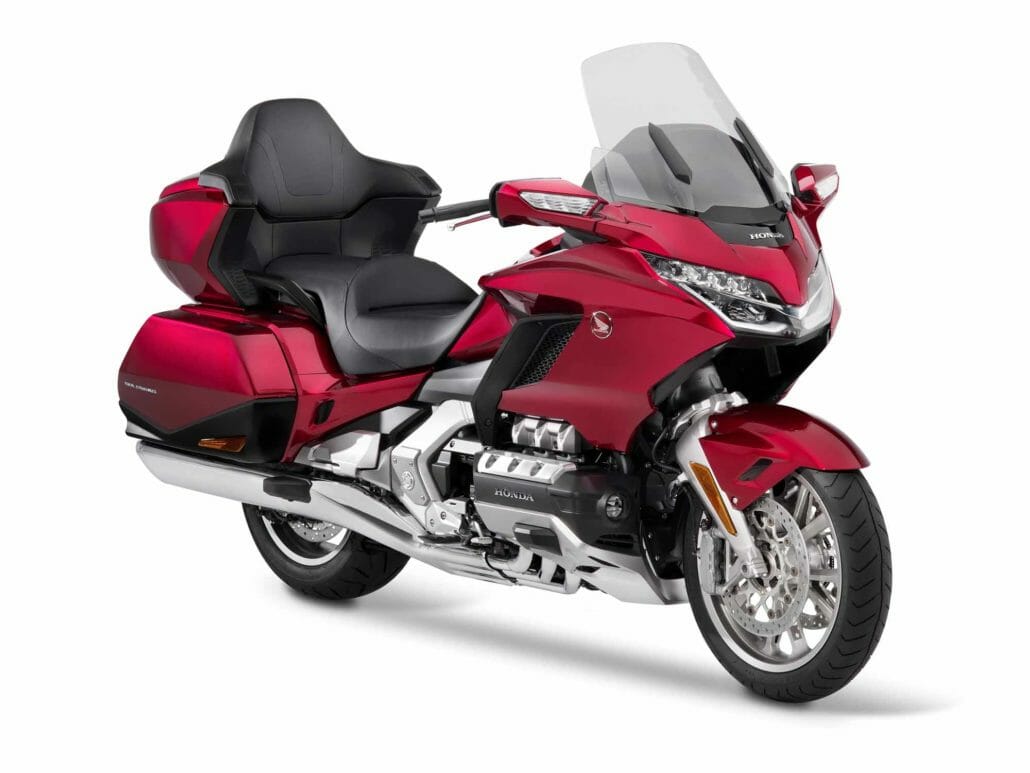

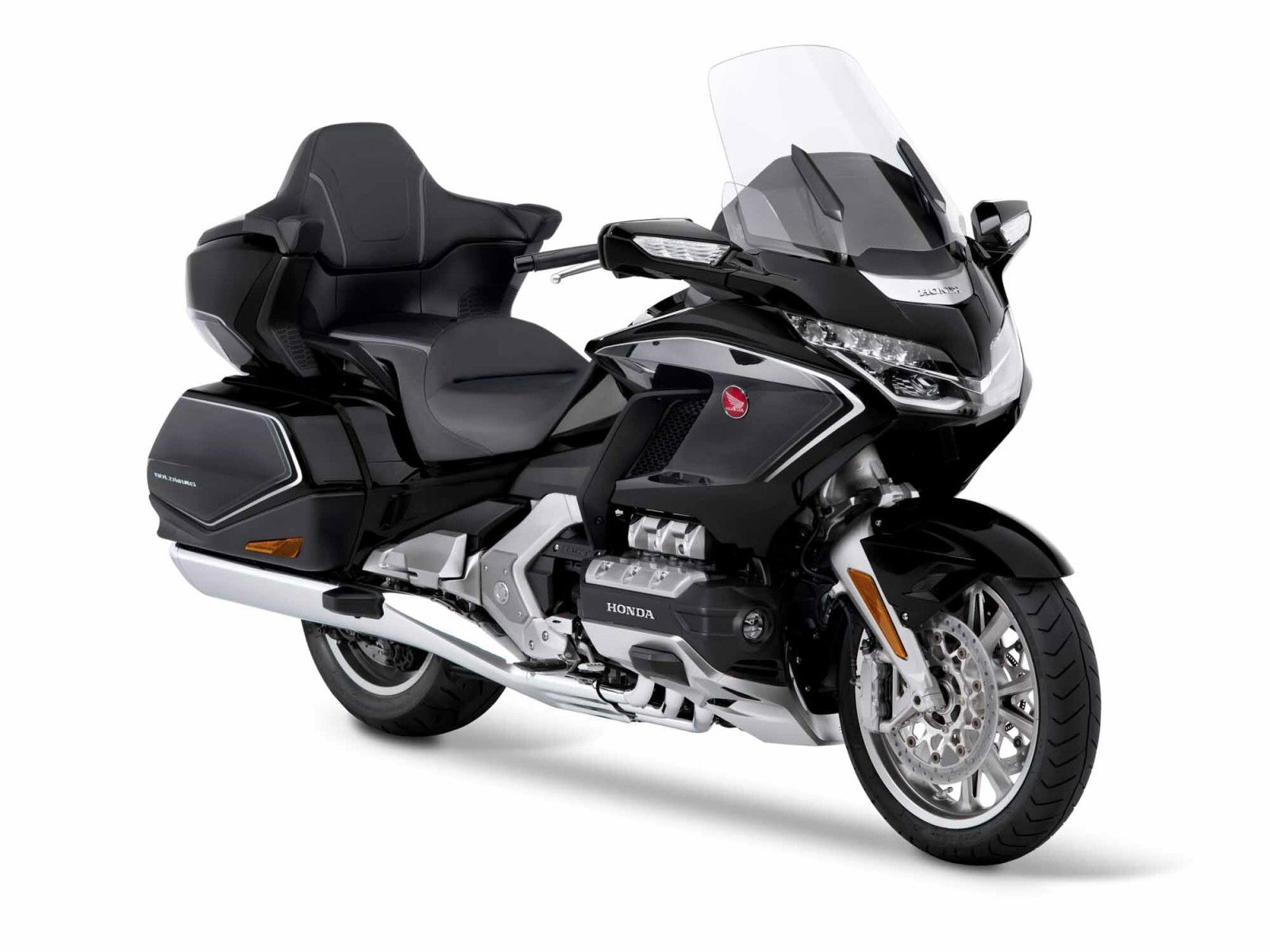

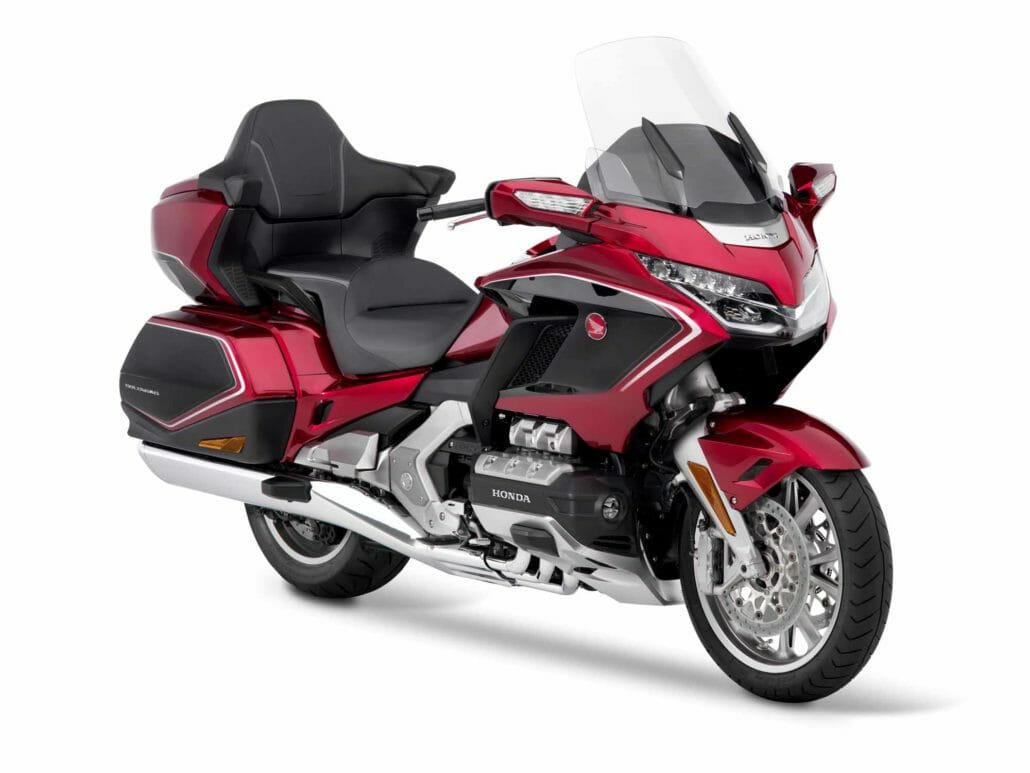

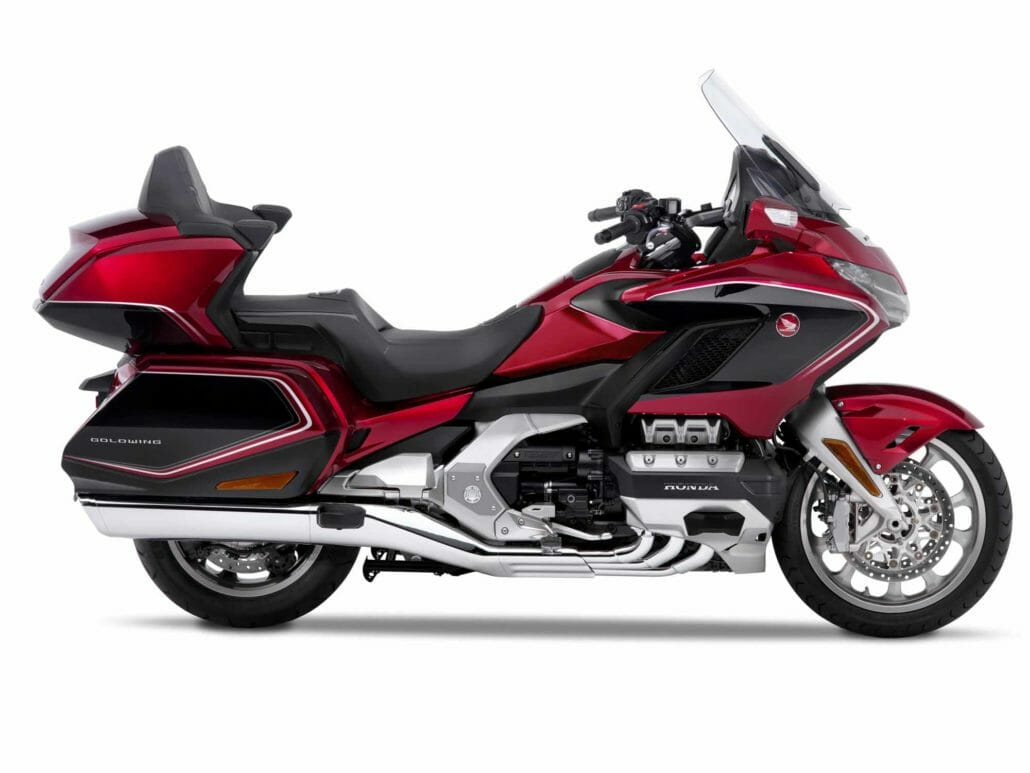

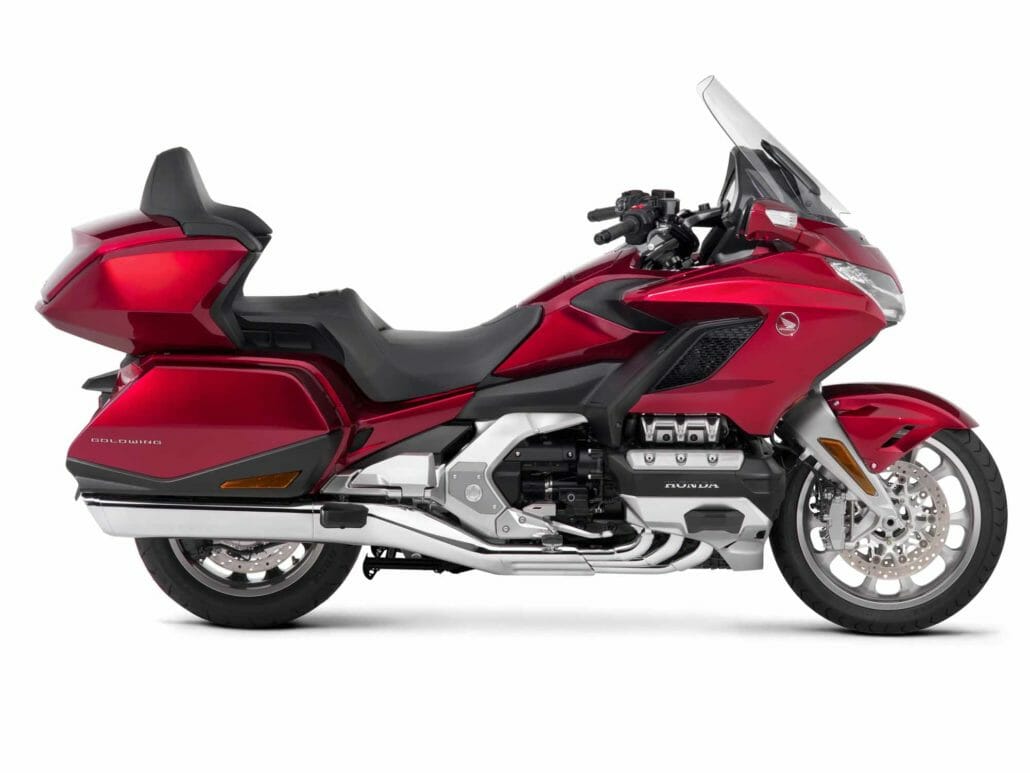

In the variant “Tour” now fog lights are part of the standard equipment. The chassis has been optimized and should now offer more comfort, especially on long tours. The pillion seat was equipped with larger handles.

Both models will be equipped with two USB interfaces in the future.

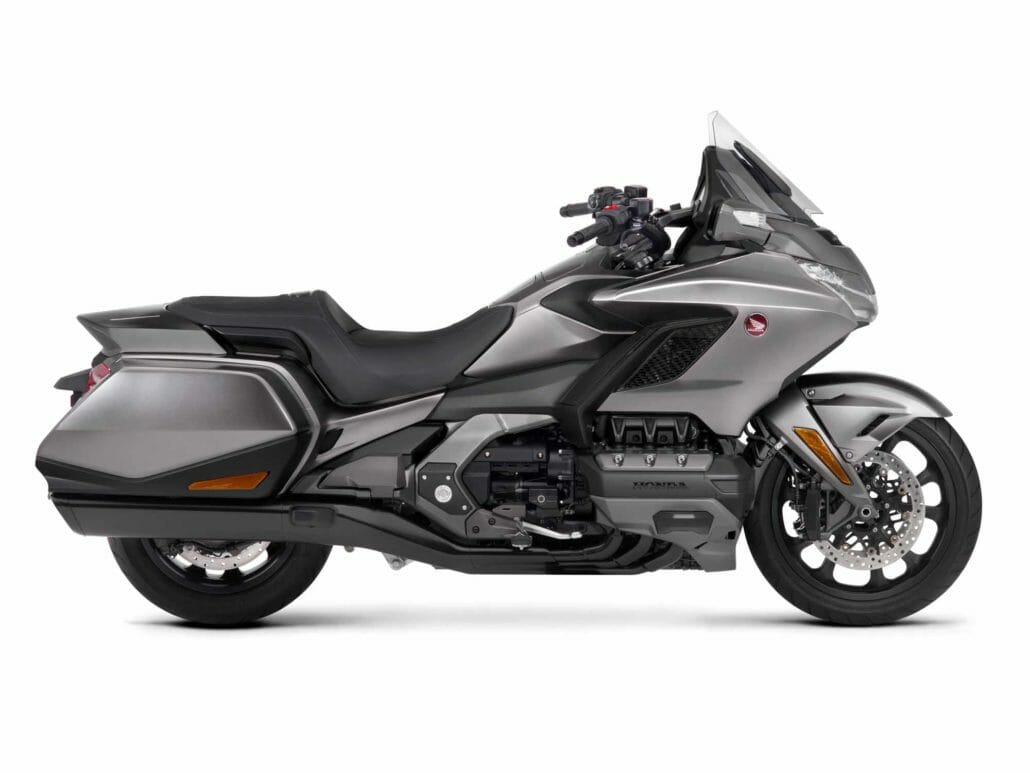

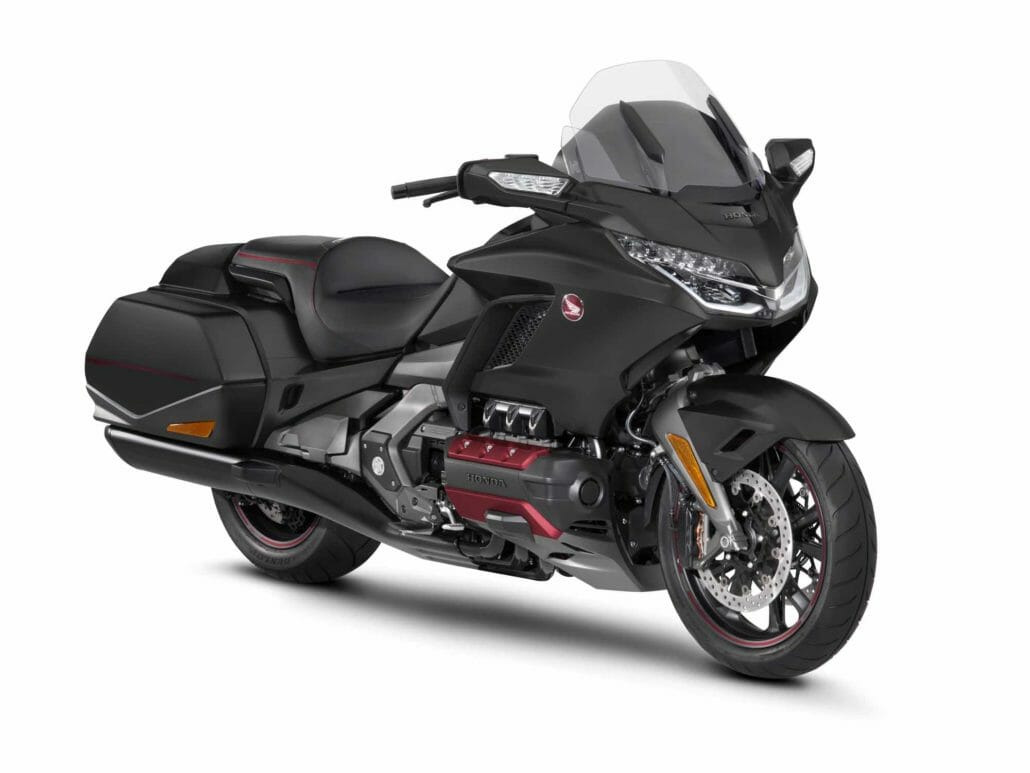

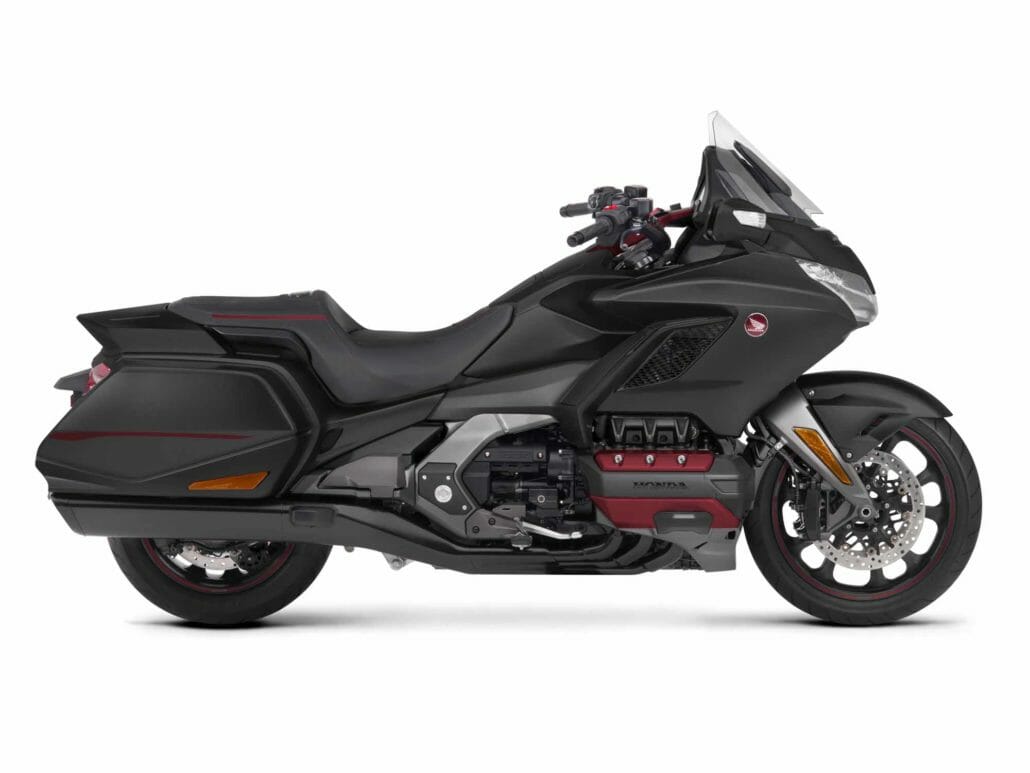

In addition to the already available colors, there will also be the variants “Matte Ballistic Black Metallic” for the basic model with DCT and “Pearl Glare White” for the tour variant with DCT and airbag.

Technical specifications

ENGINE

Type: liquid-cooled, four-stroke, 24 valves, SOHC, six-cylinder boxer
Displacement (in cm3) 1,833cm³
Valves per cylinder: 4
Bore & Stroke (in mm) 73 x 73
densification 10.5: 1
Power 93 kW (125 hp) at 5,500 rpm
Torque 170 Nm at 4,500 / min
Oil volume (in l) 4.4 / 5.6 (DCT)
CO2 emissions:
- Gold Wing / Gold Wing “Tour” MT version: 128 g / km
- Gold Wing “Tour” with DCT and Airbag: 131 g / km

FUEL SYSTEM

Mixture preparation PGM-FI Electronic fuel injection
Throttle diameter (in mm) 50
Air filter viscose paper filter insert
Tank contents (in l) 21,1
Gasoline consumption 5.6 liters / 100 km

ELECTRICAL

Starter Integrated Starter / Generator System
Battery 12V / 20Ah
Alternator power 12V / 120A

POWER TRANSMISSION

Clutch:
- Manual: hydraulically operated, discs in oil bath, with assist / slipper function.
- DCT: electronically-hydraulically controlled, discs in oil bath
Transmission:
- Manual: 6-speed (with overdrive) and reverse gear.
- DCT: 7 gears, plus forward / reverse maneuvering
primary ratio 1.795 (79/44)
grades:
- (MT) 1: 2,200, 2: 1,417, 3: 1,036, 4: 0.821, 5: 0.667, 6: 0.522
- (DCT) 1: 2.167, 2: 1.696, 3: 1.304, 4: 1.038, 5: 0.821, 6: 0.667, 7: 0.522
- return: 1.190
Final ratio engine 0,972, rear wheel 2,615
final drive kardan

FRAME

Type cast aluminum, twin tube

CHASSIS

Dimensions (L / W / H – in mm)
- Gold Wing: 2,475 x 925 x 1,340
- Gold Wing Tour: 2575 x 905 (DCT) or 925 mm (MT) x 1430 mm
Wheelbase (in mm) 1.695
Steering head angle (in degrees) 30.5
Caster (in mm) 109
Turning circle (in m) 3,4
Seat height (in mm) 745
Ground clearance (in mm) 130
Weight fully fueled (in kg) Base: 365, Tour: 379, Tour DCT: 383

SUSPENSION

suspension front double wishbone suspension
Suspension rear Pro Link

BIKES

Front tire size 130/70 R 18
tire size rear 200/55 R 16
Front rim size (in inches) 18 x MT 3.5
Rear rim size (in inches) 16 x MT 6.0

BRAKES

ABS type combined ABS system, electronically controlled
Front 320 mm x 4.5 mm double discs, floating bearings, 6-piston calipers, hydraulically activated, sintered metal pads
316 mm x 11 mm rear disc, 3-piston brake calliper, hydraulically activated, sintered metal pads
