Honda presented a complete revision for their little fun motorcycle. Besides a new engine, the look was changed into a retro style and a new name is being added on top.

Honda presented a complete revision for their little fun motorcycle. Besides a new engine, the look was changed into a retro style and a new name is being added on top.



Long tradition and many names

The small Honda Monkey was developed in 1963 and offered not only easy handling and functionality but also a lot of fun. Over the years the name changed again and again and also on different markets there were different names in between. Dax, Ape, Monkey and finally Grom were some names. The new model now gets the name MSX125 Grom, at least in Europe.



Changed optics

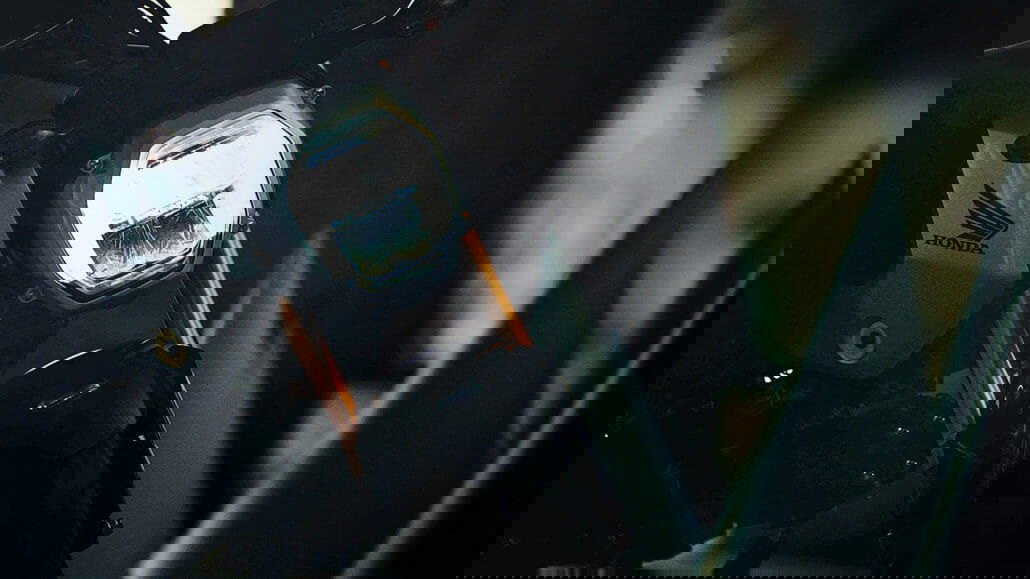

The bodywork was completely redesigned. The fairing is easily removable to support an easy individualization. The new LC-display has been completed with a rev counter and a gear indicator. The settings for trip meter, the clock, the change between the odometers is done with the switches on the sides of the display. A fuel gauge is also available.

  • Newly designed bodywork enhances the possibilities for individualization
  • High customizing potential, because all four cladding parts are equipped with
  • only six screws fixed on each side
  • The LC-Display now also contains rev counter and gear display
  • colors: Force Silver Metallic, Matt Gunpowder Black Metallic or Gayety Red



New engine

Propulsion is provided by a new air-cooled 125cc two-valve engine with 50 mm bore and 63.1 mm stroke. It delivers 9.8 HP or 7.2 kW at 7,250 rpm and a torque of 10.5 Nm at 5,500 rpm. It complies with the Euro5 standards.

Also new is the 5-speed transmission, previously a 4-speed transmission was used. The top speed is specified as 94 km/h. The new MXS125 Grom should be able to handle both speedy rides through the dense city traffic and comfortable cruising.

  • Completely new, air-cooled 125 ccm two-valve engine
  • 5-speed gearbox
  • Meets the EURO5 standard



Technical data

ENGINE

  • Type 2-valve single cylinder, air-cooled
  • Displacement 125 ccm
  • Bore x stroke 50.0 mm x 63.1 mm
  • Compression ratio 10.0:1
  • Power 9.8 HP (7.2 kW) at 7,250 rpm
  • torque 10.5 Nm at 5,500 rpm
  • Engine oil quantity 1.1 l



FUEL SYSTEM

  • mixture preparation PGM-FI fuel injection
  • tank capacity 6,0 l
  • Consumption 65/100km*



ELECTRICITY

  • Starter Electric
  • Battery capacity 12V-3,5AH
  • ACG output 225W/5,000 rpm



DRIVE

  • Clutch type multiple discs in oil bath
  • Gearbox type 5-speed
  • End drive chain



FRAME

  • Type Mono-Backbone Steel frame



CHASSIS

  • Dimensions (L x W x H) 1,760 mm x 720 mm x 1,015 mm
  • wheelbase 1.200 mm
  • Steering head angle 25⁰
  • Overtravel 81 mm
  • seat height 761 mm
  • ground clearance 180 mm
  • Weight (full tank) 103 kg
  • turning circle 1,9 m



DRIVERY

  • Front 31 mm USD fork
  • Rear single damper, steel swingarm with box section



RIMS

  • Front 5 spokes, cast aluminium
  • Rear 5 spokes, cast aluminium
  • Rim size front MT 2,5-12
  • Rim size rear MT 2,5-12
  • Front tire 120/70-12
  • Rear tires 130/70-12

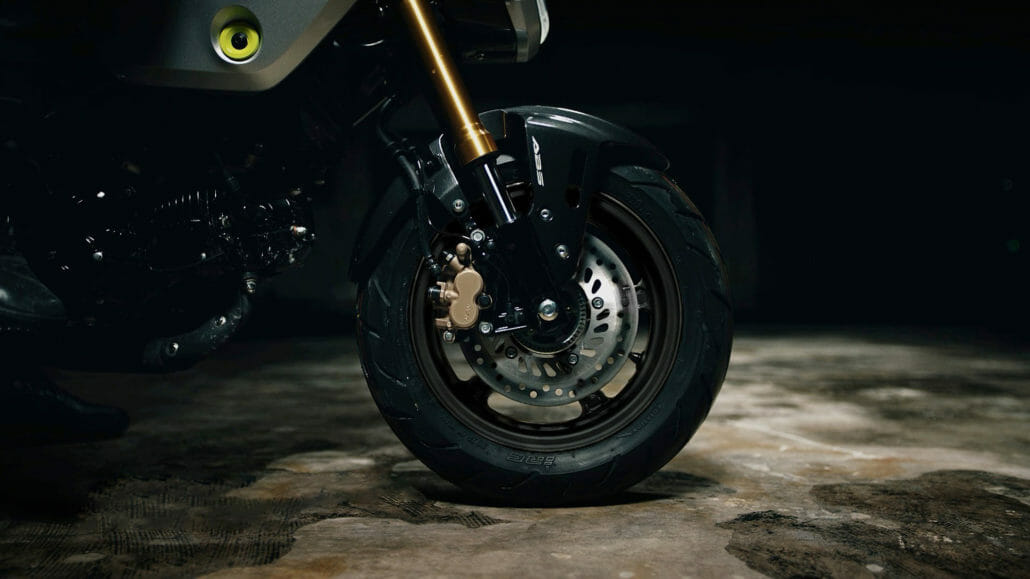

BRAKES

  • Front brake 220 mm single disc with hydraulic double piston brake caliper
  • Rear brake 190 mm single disc with hydraulic single piston brake caliper



INSTRUMENTS & LIGHTING

  • Instruments LC-Display with speedometer, 2 daily odometer, fuel gauge and clock
  • Lighting LED headlight and taillight
