FB Mondial Flat Track 125 with Euro5

The small motorized flat track motorcycle with road approval is quite popular with European and American riders. As FB Mondial announced, an updated 2020 model will be launched in the fall.

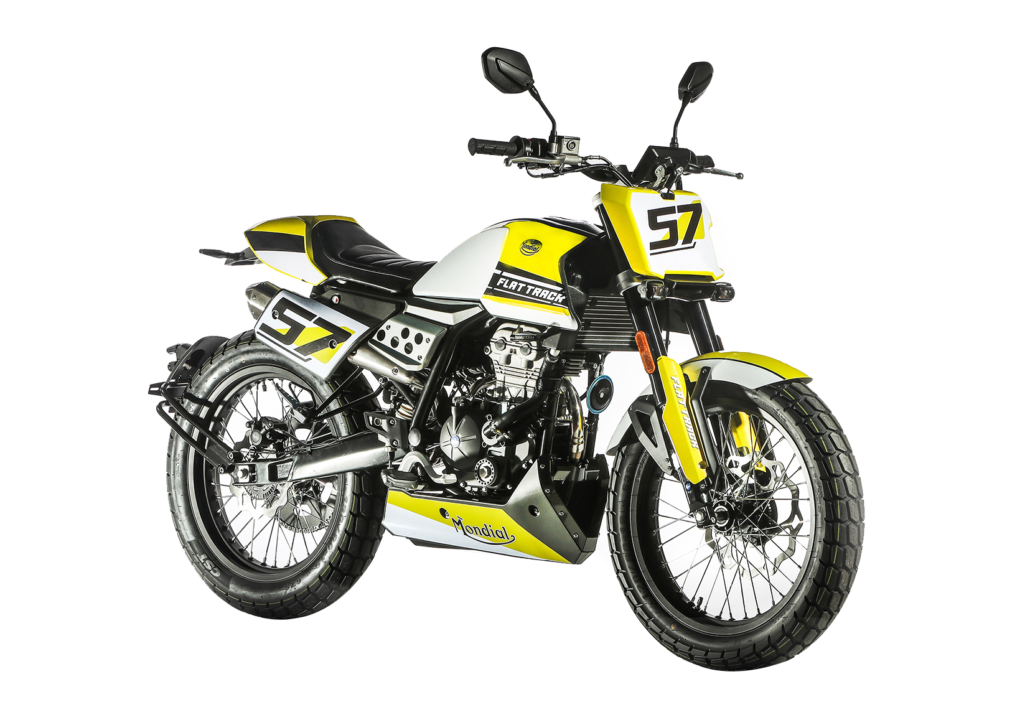

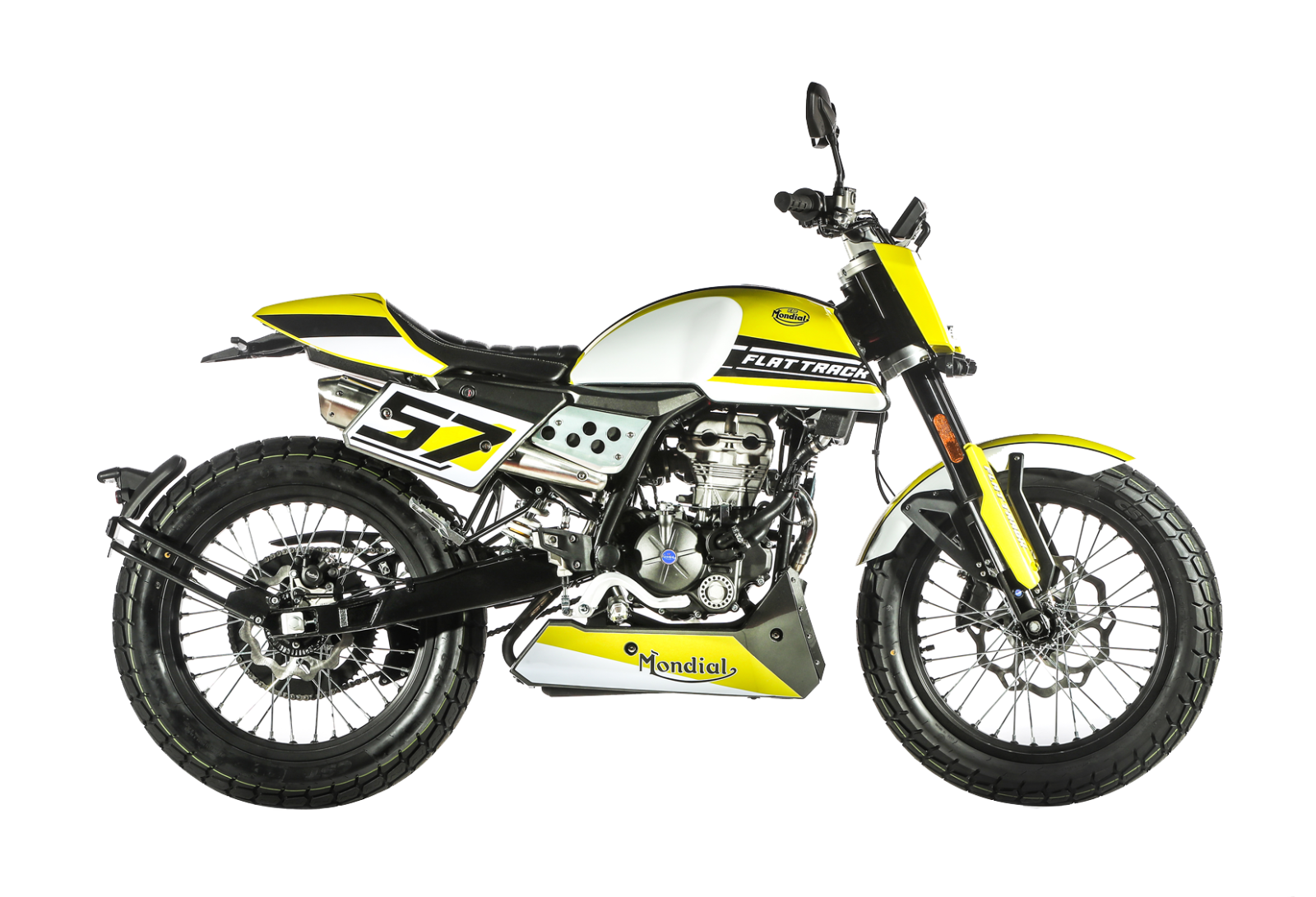

The large number plates on the front and side are typical of flat track bikes. The headlights were discreetly mounted under the front number plate, so that one can hardly see them when deactivated.

The look is also true to the wide handlebars and 19-inch spoke wheels.



In the updated model, the engine and exhaust have been revised to make the motorcycle Euro5-compliant. This should provide a little more power in the lower to medium speed range.

The driving position, the TFT display and the license plate holder have also been slightly adjusted.

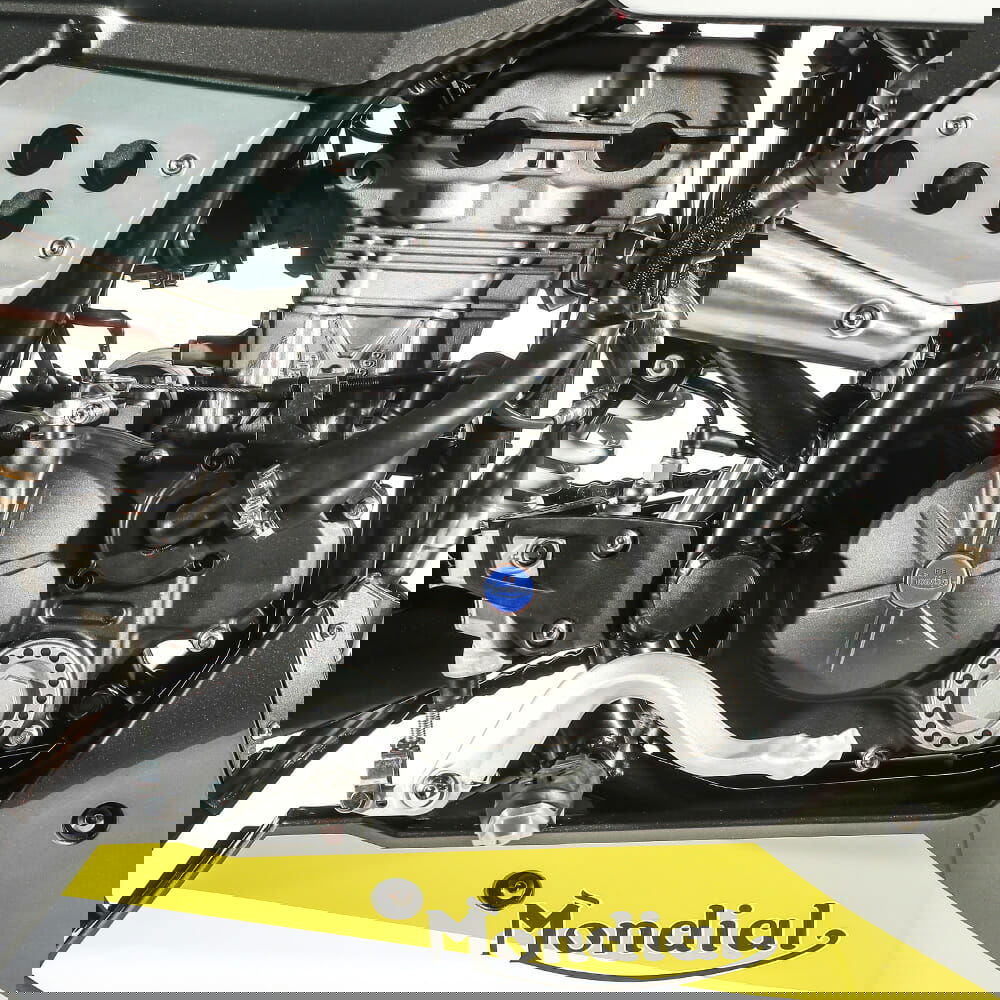

The sports motorcycle is powered by a DOHC 124cc engine. A six-speed gearbox transfers the engine power to the rear wheel. The engine produces just under 15 HP on the crankshaft.

ABS is installed as standard. A four-piston radial brake caliper and a 280 mm brake disc decelerate at the front. A single-piston caliper and a 240 mm disc are used at the rear.

The front is dampened with a 40mm USD fork. It offers 90 mm of travel. The rear mono shock damper offers 120 mm.



The update was supposed to be launched in the spring, but was postponed to September due to the Corona crisis. A price of 4,290 euros is given for Italy.

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Engine:

  • Type Single cylinder, 4 stroke, DOHC, 4 valves
  • Displacement            124 cc
  • Bore x Stroke 58×47 mm
  • Compression ratio 12,0 : 1
  • Max Power 11 kW at 9750 rpm
  • Max Torque 5 Nm at 9750 rpm
  • Lubrification Carter umido
  • Cooling System Liquid
  • Intake system EFI
  • Starting system Electric
  • Transmission 6 speed
  • Fuel Tank 9,5 L

Chassis:

  • Front suspension / travel Ø 40 mm USD fork, 90 mm
  • Rear suspension / travel Single absorbers (120 mm)
  • Mass in running order 133 kg
  • Load 2 people
  • Front Brake / Disc diam. 4 pistons radial caliper ABS/CBS 280 mm
  • Rear brake/ Disc diam. 1 piston floating caliper  ABS/CBS 240 mm
  • Ruota Front wheel 2,15×19″
  • Rear wheel 3,00×19″
  • Front type      120/80 x 19”
  • Rear type 130/80 x 19′
  • Colours Yellow black stripes
  • Red black stripes
  • Black red stripes

Dimensions:

  • Length 2083 mm
  • Width 810 mm
  • Height 1140 mm
  • Wheelbase 1380 mm
  • Ground clearance      205 mm
  • Seating position height         870 mm
