Ducati has presented the first new model for 2018, the revised monster 821. All informations and data
[sam id=”2″ codes=”true”]25 years ago, the first monsters were presented at IFMA. The 821 is designed to represent exactly the same virtues that make the first monsters 900 so unique: the perfect combination of rich performance, easy controllability and radiance.

What’s new about Monster 821 from 2018?

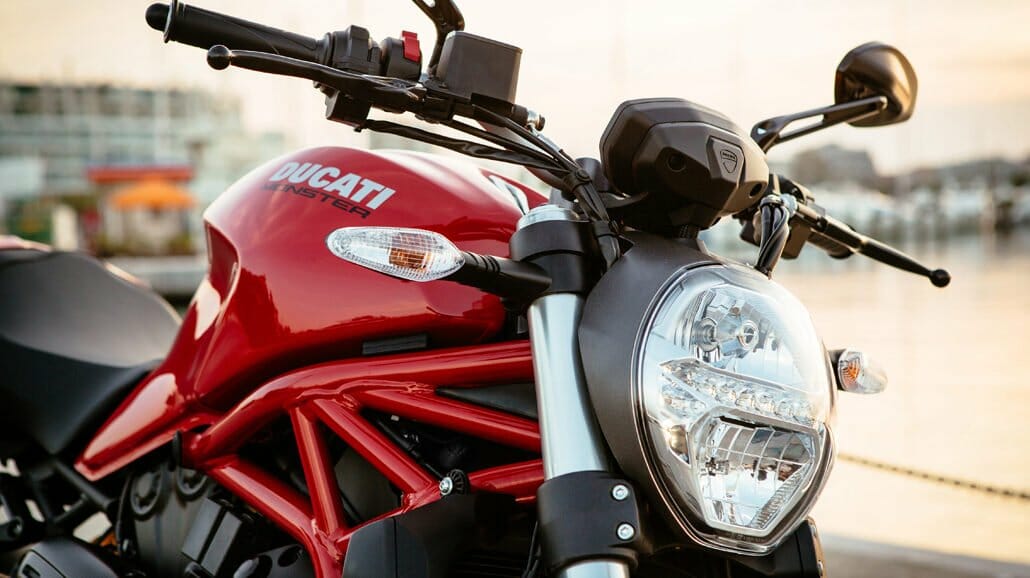

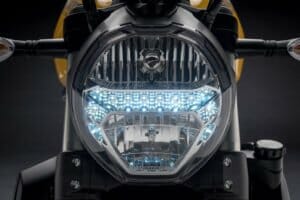

New, headlights and lighting:

Ducati Monster 821 MotorcyclesNews 35

The headlight has been changed. The big sister, the monster 1200, is orientated. A halogen bulb is used as a normal light source. In addition, there is the LED daytime running light in hoof-in-shape. LEDs are also installed in taillight. The Monster 821 has a warning light function, which is activated by keeping the left turn signal flashing for 4 seconds.

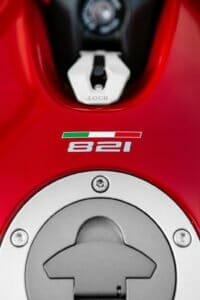

New tank

Like the Monster 1200, the 821 is also considered to be a slim and compact motorcycle with sports character. For this reason, the designers paid particular attention to the tank, which is slimmer and more modern. In the reworked design, the stylistic monsters from 1992 are to be found again. To that again highlight the anodized aluminum retaining clip comes back to the tank.

Ducati Monster 821 MotorcyclesNews 43

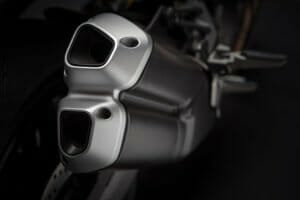

New silencer

The new muffler is optically derived from the Monster 1200 R and is EURO 4 compliant.

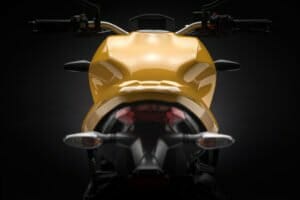

New rear section

The rear is short, compact and slim. A classic grate tube frame is used.

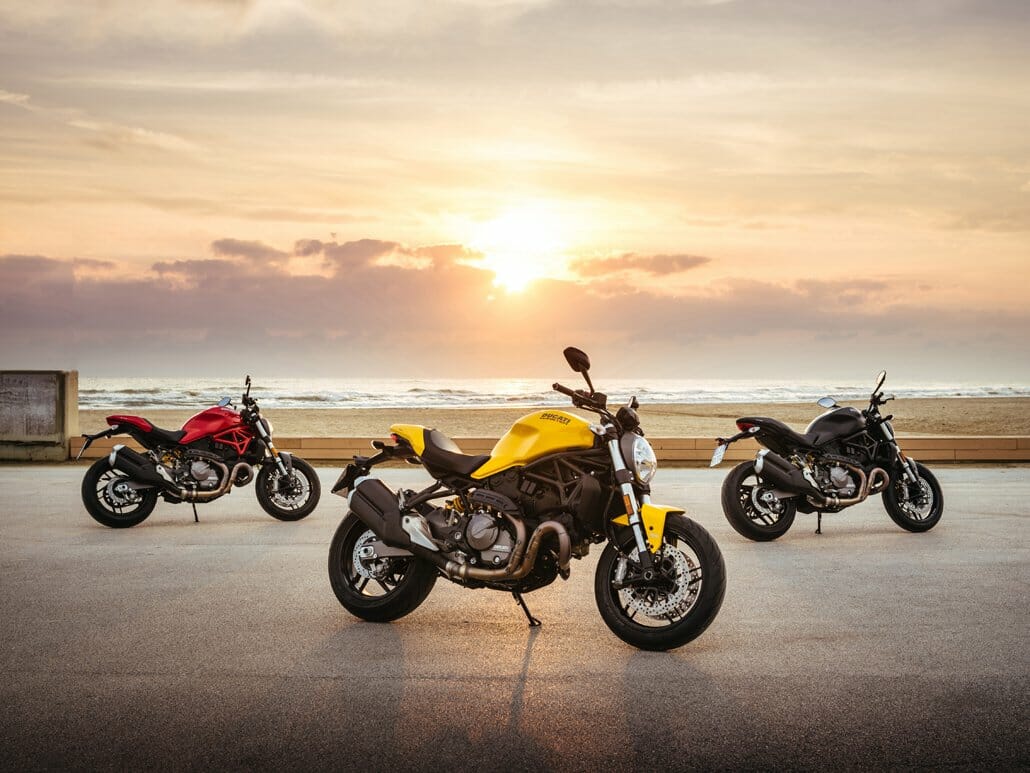

The colors of the Ducati Monster 821 2018:

  • Ducati yellow with black frame and black wheels
  • Ducati red with red frame and black wheels
  • Dark Stealth (black) with black frame and black wheels

Ducati Monster 821 MotorcyclesNews 23Ducati Monster 821 2018 Features / Data:

  • 821 cm³ Testastretta 11 ° engine
  • Euro 4
  • Maximum power 109 hp at 9,250 rpm
  • Steel space frame
  • Cast aluminum dual swing arm
  • New tank with iconic clip
  • New rear section
  • New silencer
  • New headlight
  • Individual, separately fastened driver and passenger footrests
  • TFT color display with gear and fuel gauge
  • Riding Modes (three configurations)
  • Power Modes (three configurations)
  • Ducati Safety Pack (three-stage ABS, eight-stage DTC)
  • 43 mm Telegabel
  • Adjustable shock absorber
  • Height adjustable bench
  • Pillion seat cover
  • Prepared for DQS up / down
  • Prepared for strain gages

Further data:

Ducati Monster 821 MotorcyclesNews 41

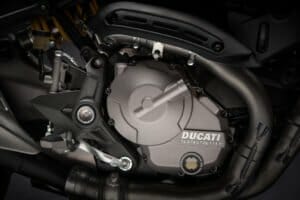

The engine

Desmodromically controlled 821cc Testastretta with 11 ° L-Twin.

Power of 109 hp (80 kW) at 9,250 rpm. – 86 Nm at 7.750 / min. EURO 4 compliant.

It is integrated in the lattice tube frame as a supporting element. The engine is to have an excellent throughput across the entire speed range and thus offer both beginners and experts alike unpretentious and expressive driving pleasure.

Valve clearance test every 30,000 km

spring elements

43 mm forks. The shock absorber is adjustable in pretension and rebound damping.

Ducati Monster 821 MotorcyclesNews 44

Wheel and tires.

10-spoke light-alloy wheels in 3.50 “x 17 front and 5.5” x 17 rear. First tire: Pirelli DIABLO ROSSO 3 in size 120/70 front and 180/55 rear.

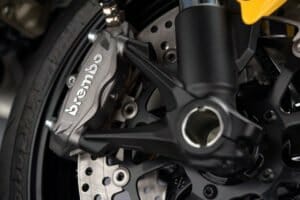

brakes

Front: Two radial-mounted Brembo M4-32 Monobloc 4-piston fixed calipers with 320 mm brake discs.

Rear: A brake (the same Brembo as on the front) that can bite into a 245 mm brake disc.

Ducati Monster 821 MotorcyclesNews 52

assistance systems

This is where the Ducati Safety Pack (DSP) is used. It consists of three-stage ABS, eight-stage traction control and ABS.

There are three different riding modes.

  1. In “Sport” the full power is delivered directly and the DTC intervention is reduced. ABS works at level 1 – with the lift-up function of the rear wheel deactivated.
  2. In “Touring” the full power is unfolded, but a little softer. DTC intervenes earlier and the ABS works at level 2 – with a moderately effective lift-up function of the rear wheel.
  3. In “Urban” the engine power is limited to 75 hp. DTC intervenes earlier and the ABS on stage 3 provides the highest braking stability – the lifting of the rear wheel is prevented.

A quickshifter (automatic switch) including blipper function (also for shifting down the gears without actuation of the clutch) can be ordered optionally.

Others

Ducati Monster 821 MotorcyclesNews 39

The TFT color display has gear and fuel gauge. By repositioning the reading should work better in bright daylight. There are three different display layouts. Optional is the Ducati Multimedia System (DMS) with which the display via Bluetooth module can be coupled with the smartphone.

More Pictures





Introducing the Ducati Monster 821 for 2018:

Ducati Monster 821 MotorcyclesNews 26

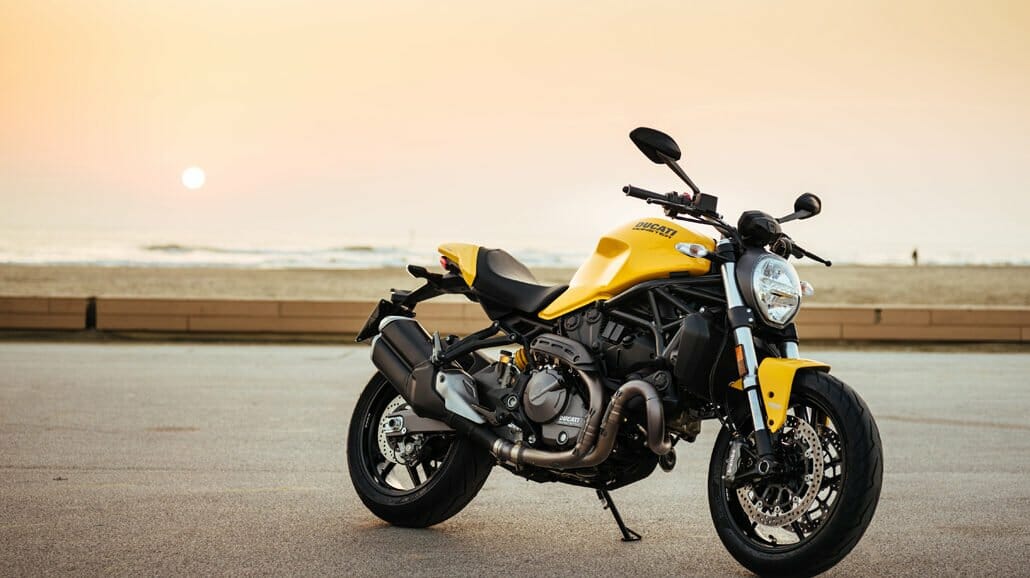

Ducati Monster 821 MotorcyclesNews 32

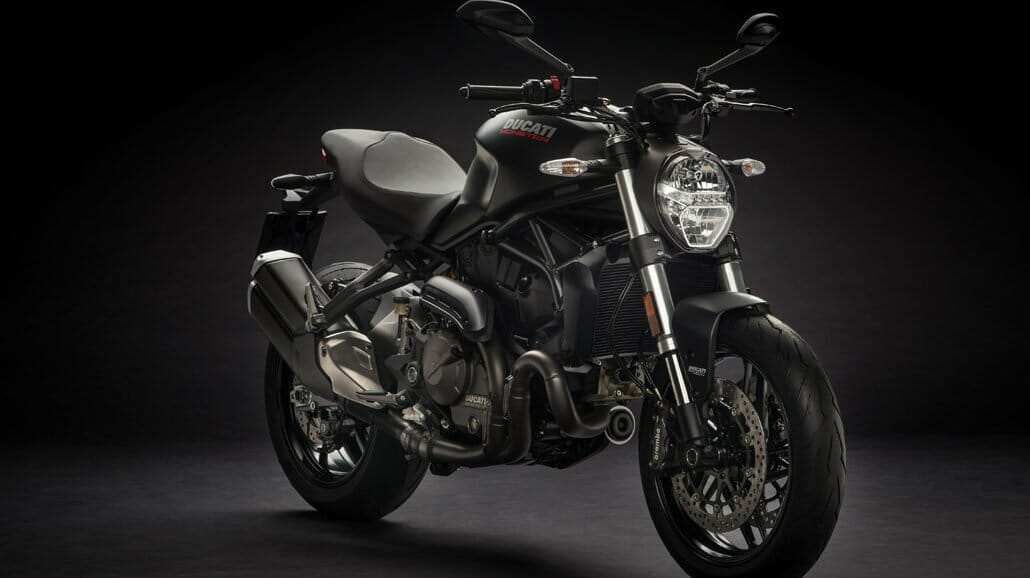

Ducati Monster 821 MotorcyclesNews 59
